Network
The Network class represents a graph with nodes and links. Network objects are created by importing JSON files in a specific format using the graphjson function:
let network = await msc.graphjson("data.json");
A network is represented using two data tables, one for the nodes and one for the links (Figure 1). Mascot automatically infers the data type for each node attribute and link attribute, and parses the values accordingly.

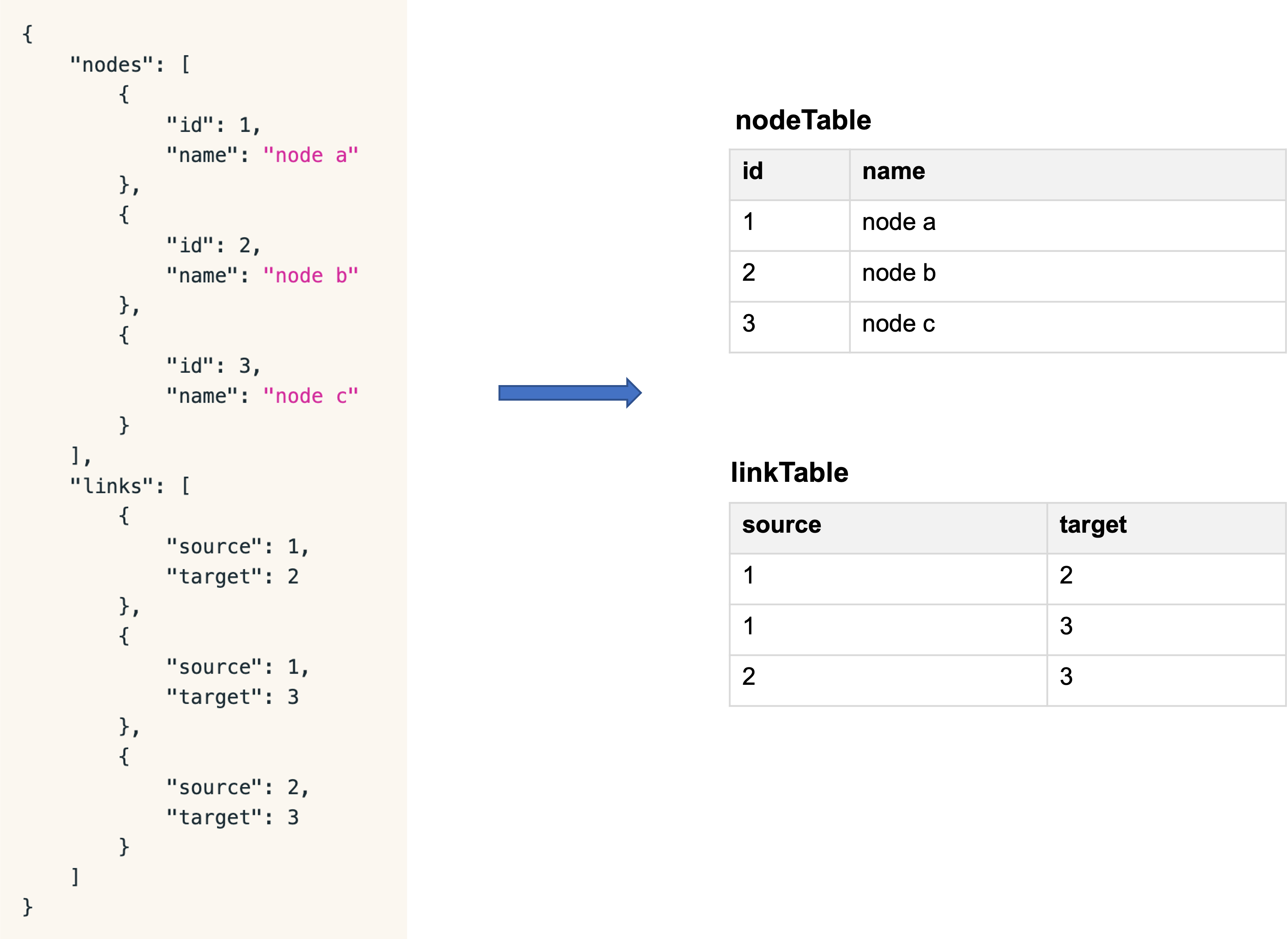

Figure 1: a network dataset is parsed as two data tables
Properties
| property | explanation | type | default value |
|---|---|---|---|
nodeTable  | the node table in the network | DataTable | |
| linkTable | the link table in the network | DataTable | |
| nodes | the nodes in the network | Array of Objects | |
| links | the links in the network | Array of Objects |
Methods
| method | explanation | return type |
|---|---|---|
| getNode(id) | returns the node with the id | Object |
